The Functional Ring: Why the “Transfer Bead” is Critical for Industrial Mason Jar Filling
Why is there a glass ring below the threads of your Mason jar? We explore the hidden world of the "Transfer Bead"—explaining how it enables high-speed automation, provides structural integrity, and even helps keep your product labels clean.

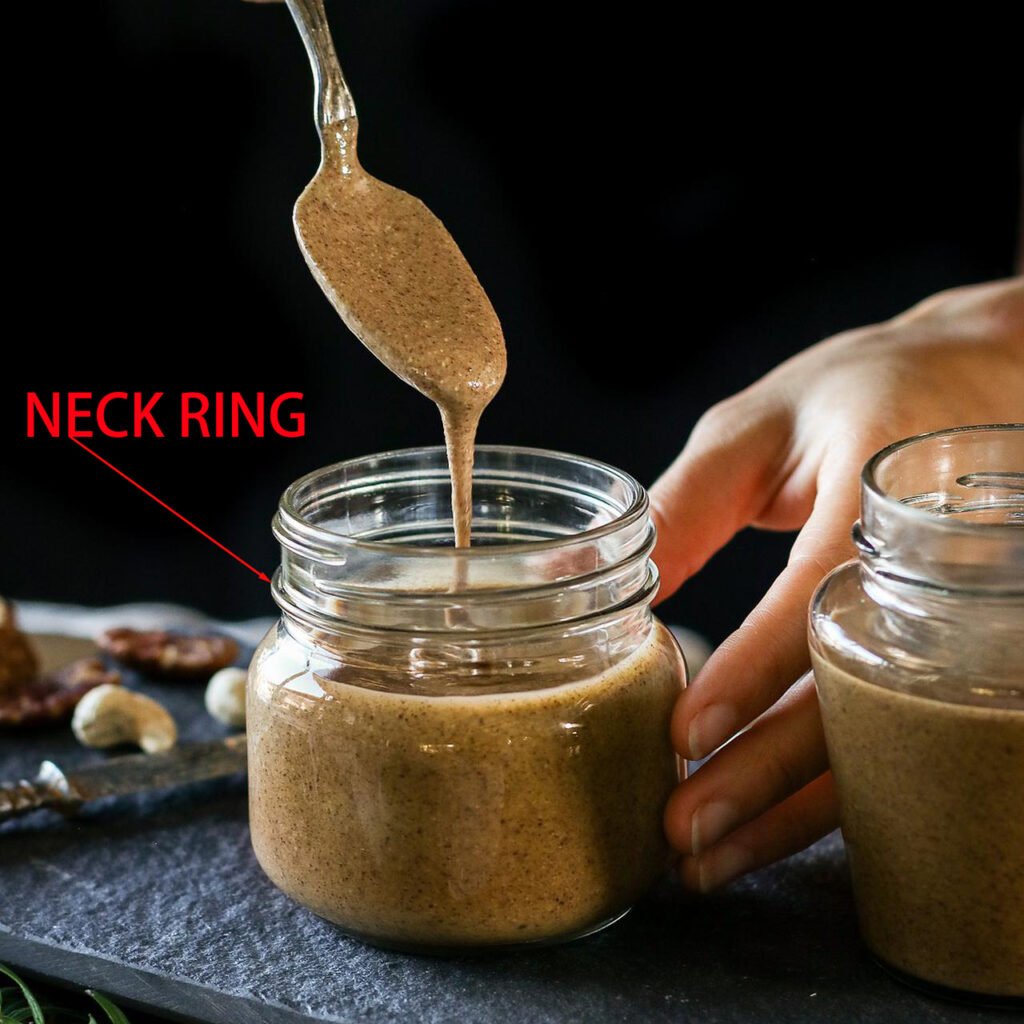

If you look closely at the neck of a professional Mason jar from XUZHOU TROY, just below the threads, you will see a prominent glass ring encircling the neck. In the glass industry, this is known as the Transfer Bead (or Neck Ring).
While it might look like a decorative transition between the neck and the body, the transfer bead is a high-performance engineering feature. For our B2B partners operating automated lines, this “little ring” is the key to both manufacturing efficiency and end-user hygiene.
1. The Birth of the Jar: The Manufacturing "Handle"
The primary reason for the transfer bead’s existence is rooted in the IS (Individual Section) machine process.
The “Take-Out” Phase: When a jar is blown into its final shape, it is glowing hot and extremely soft. Mechanical “take-out tongs” must grab the jar to move it from the mold onto the conveyor belt.
Precision Grip: If the tongs grabbed the body of the jar, they would leave permanent marks or deform the glass. Instead, they grab the jar securely underneath the transfer bead. This ring acts as a structural “handle” that allows us to move the jar without touching the aesthetic surfaces or the critical sealing threads.
2. High-Speed Stability on Your Filling Line
The transfer bead isn’t just for the factory; it is a vital tool for your automated facility.
The “Hold-Down” Mechanism: On many high-speed filling and capping lines, the jar needs to be stabilized as it moves under the filling nozzles. The transfer bead allows “neck-handling” equipment to support the jar from the top rather than the bottom.
Torque Resistance: During the capping process, a significant amount of downward and rotational torque is applied. A well-engineered transfer bead provides a mechanical stop that helps prevent the jar from spinning or vibrating, ensuring a consistent and tight seal every time.
3. The "Drip Catcher": A Secret for Hygiene
For brands selling viscous liquids like honey, maple syrup, or essential oils, the transfer bead serves an unplanned but essential secondary function: it acts as a drip guard.
Surface Tension: If a consumer pours liquid and a drop runs down the side of the mouth, the transfer bead often breaks the liquid’s surface tension.
Protecting the Label: By stopping the drip at the neck, the bead prevents the liquid from running all the way down the body of the jar, where it would inevitably stain the label or make the jar sticky to the touch.
4. Quality Control: What to Look For
At XUZHOU TROY, we pay close attention to the “Transfer Bead Profile.” A poorly manufactured bead can be a major liability:
Avoid “Sharp Beads”: If the bead is too sharp, it can cause micro-cracks during the “take-out” process, which may lead to neck breakage during shipping.
Consistent Diameter: The outer diameter of the bead must be consistent. If it is too wide, it may jam in your star-wheels; if it is too narrow, your capping machine’s grippers may slip.
Why XUZHOU TROY Precision Matters
We utilize high-resolution digital imaging during our cold-end inspection to ensure that the transfer bead on every jar is perfectly formed and free of “checks” (tiny cracks). By maintaining the dimensional integrity of this ring, we ensure that our jars are “plug-and-play” ready for the world’s most advanced automated filling lines.
In the world of glass, the smallest details often serve the biggest functions. The transfer bead is a perfect example of how XUZHOU TROY combines manufacturing necessity with customer-facing utility. When you source from us, you are getting a jar that is engineered to be handled—quickly, safely, and cleanly.
Does your current glass supplier meet the dimensional tolerances required for your high-speed line? Contact XUZHOU TROY for technical drawings and samples of our precision-engineered neck finishes.
